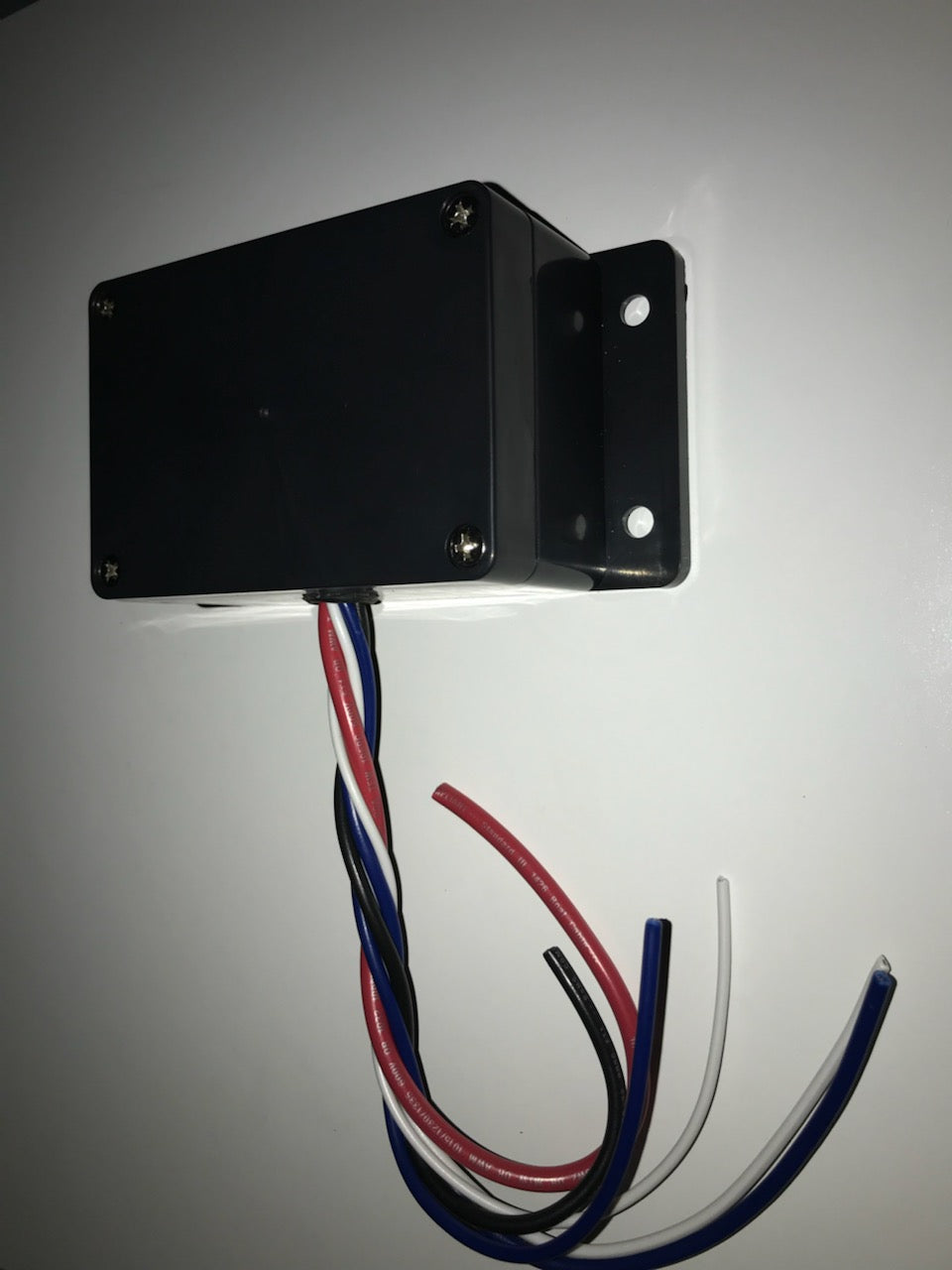

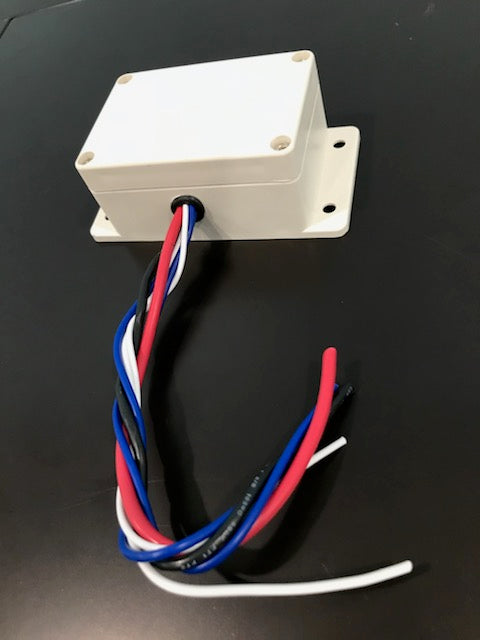

Engine Hatch Actuator Relay Box
Couldn't load pickup availability

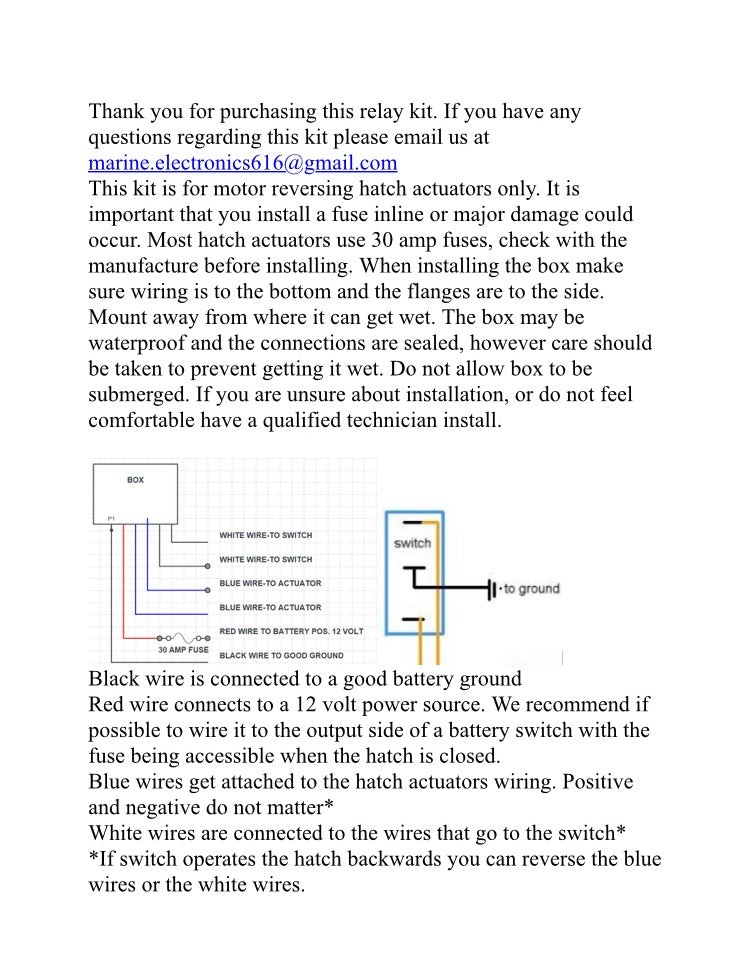

Many manufactures ran all the amperage thru the switch which creates a voltage drop slowing the actuator and making it weak. This kit when installed gets voltage from the battery and only uses the switch to trigger the relays allowing more voltage to go to the actuator. This kit is easy to install, a few connectors, a fuse or breaker, and maybe a little wire and your actuator will act like brand new. The case is waterproof so water is not an issue. This is a 12 volt system rated for 40 amps. The wiring is very simple, 6 wires and mount it.
This can not be used on Lenco or Bennett systems
Technical Information
RELAY
Contact Rating: 30/40 A @ 14 VDC
Contact Resistance: 100 mΩ
Coil Voltage: 12 VDC
Pickup Voltage: ≤ 70%
Release Voltage: ≥ 10%
Coil Power: 1.8 Watts
Insulation Resistance: 100 MΩ
Dielectric Strength:
Between open contacts - 500 VAC
Between coil & contact - 750 VAC
Mechanical Cycle Life 1 x 105
Electrical Cycle Life: 1 x 107
Temperature Range: ~55 to +85°C
Weight: 1.41 oz (40 g)
Tab Size (in.): 0.25
Dimensions
Dimensions
2.75 W x 5" L x 2" H

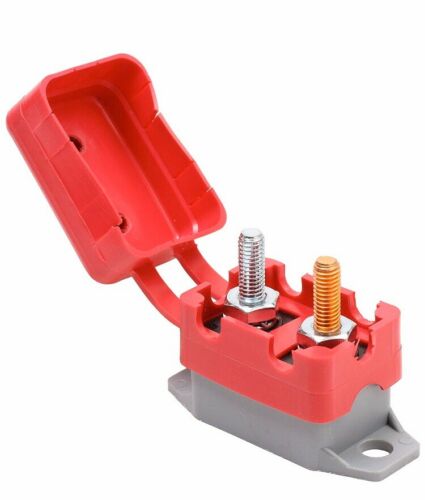

Don't forget the Circuit Breaker
Like all electronic devices the power circuit needs to be protected. We offer a self resetting 30 Amp Circuit Breaker
-
One Year Warranty on our Relay Box
Sometimes electronic parts do fail, we try to use the highest quality parts available and that is why we offer a one year warranty.
